seagate backup plus portable drive
希捷移动 硬盘数据恢复 ST1000LM024 HN-M101MBB
电路板:100720903 M8_REV.07 R000
PN:G3913G941B14NL

接到客人请求，希捷移动硬盘由于USB接口问题不能读取里面的数据了。 因为这个只是USB接口有问题，很简单就可以处理好，经详细沟通客人很爽快的寄来了故障的移动硬盘 seagate backup plus protable drive,希捷一款很流行的移动硬盘，以往我们也恢复过很多同样的型号，各种问题都有如：硬盘摔过卡磁头，磁头损坏需要恢复数据，电路板损坏需要恢复里面的数据（电路板板这种情况很小），恢复误删数据等等。

收到客人寄来的移动硬盘后发现客人的包装很简单，就用一层很薄的泡泡纸包着放快递袋。希捷移动硬盘的USB接口都被接出来了。

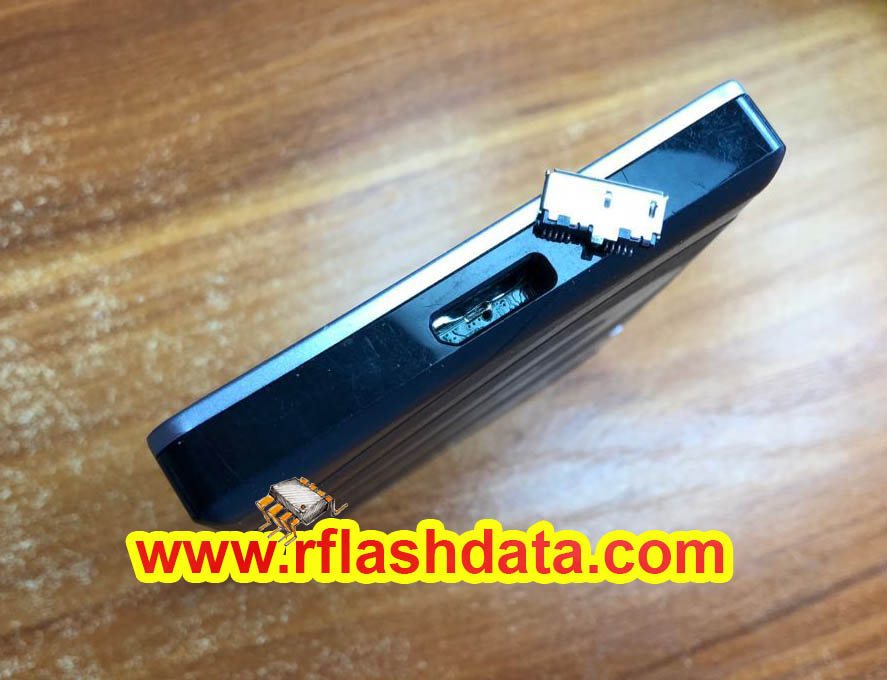

seagate portable HDD broken USB-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

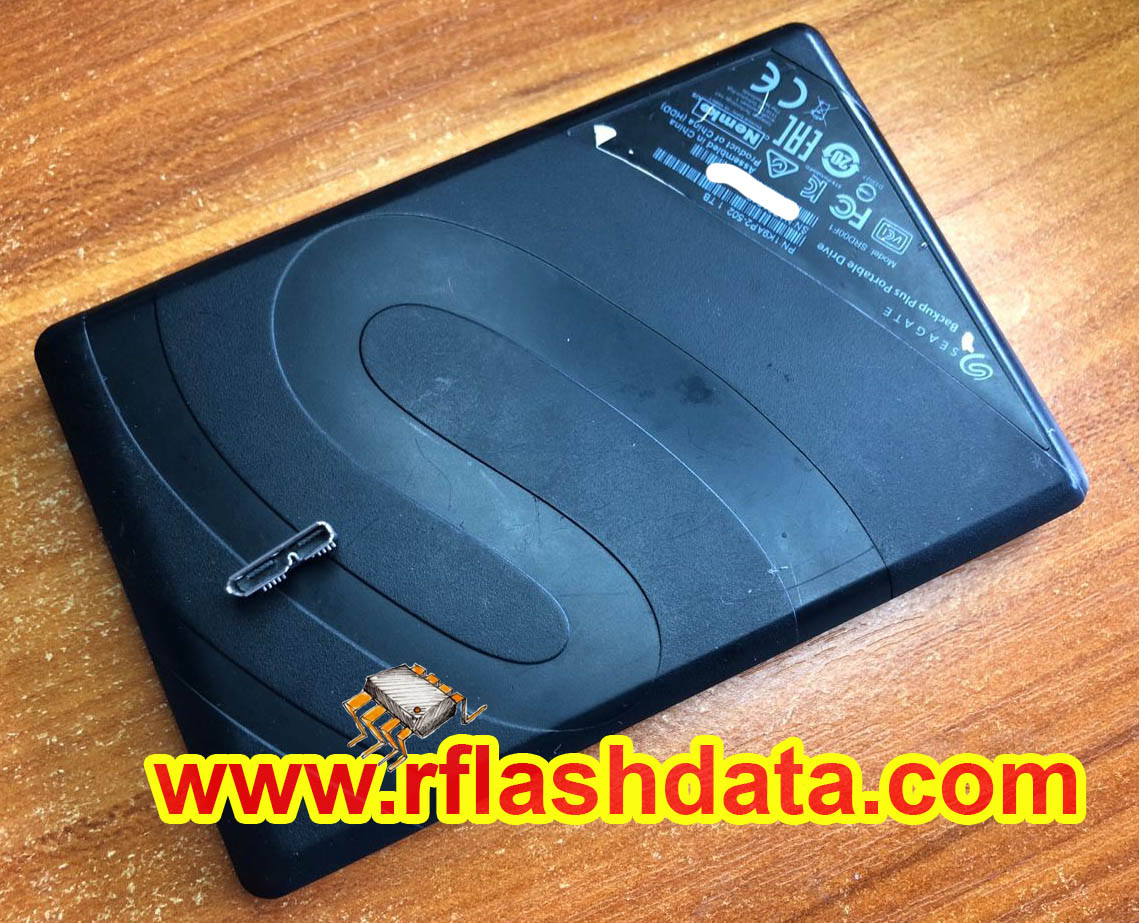

seagate backup plus recovery-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

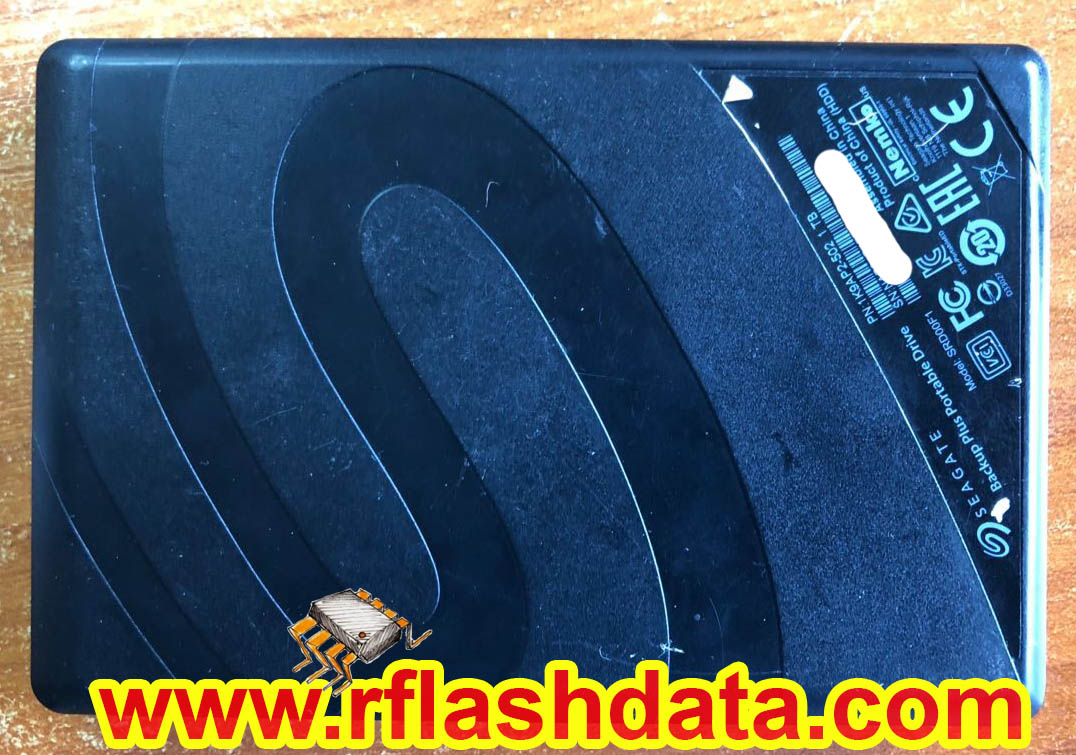

seagate backup plus-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

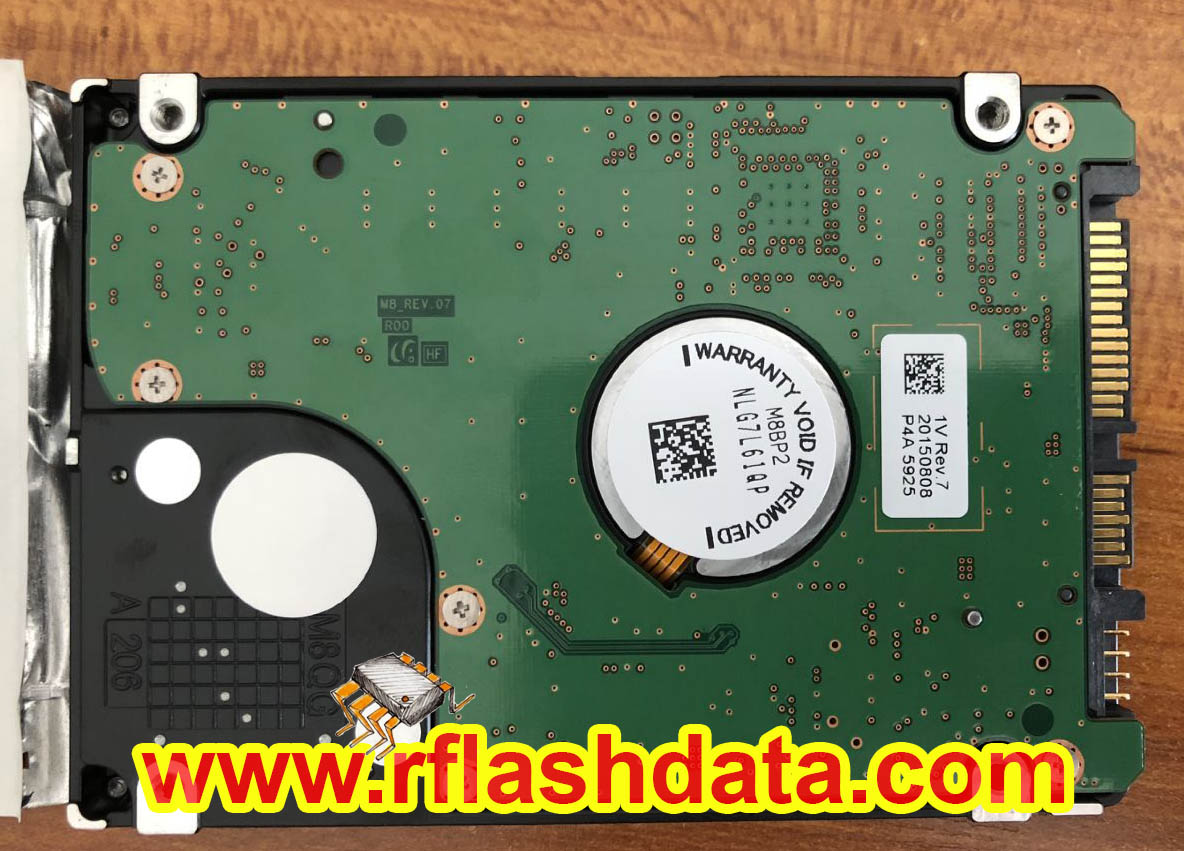

PCB 100720903 M8_REV.07-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

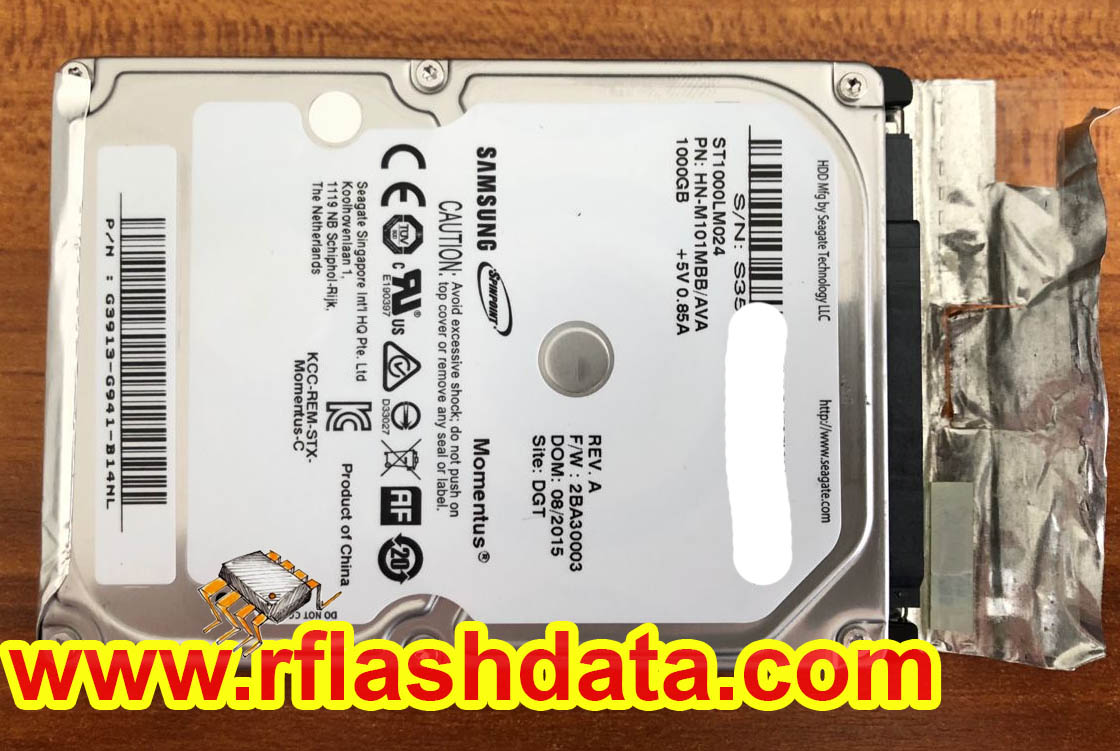

ST1000LM024 recovery-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

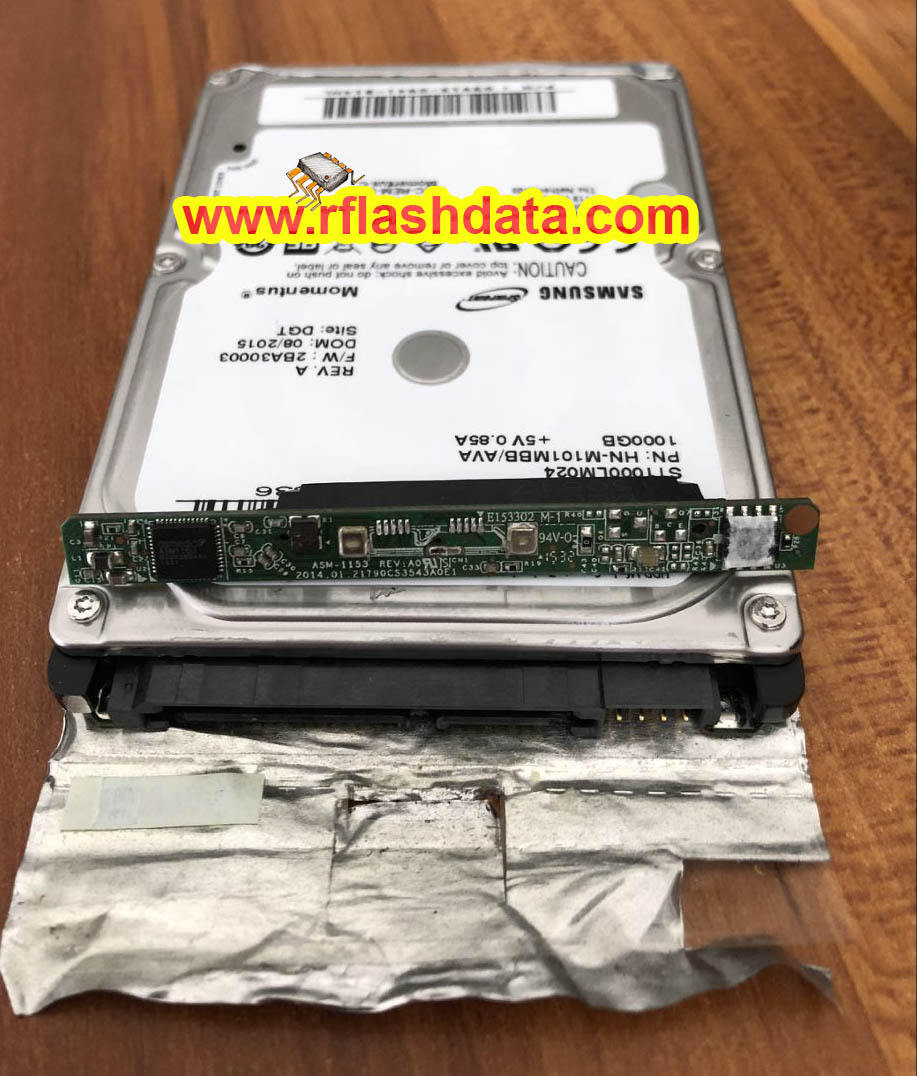

ST1000LM024 hdd recovery-希捷移动硬盘 数据恢复 ST1000LM024 HN-M101MBB

ActiveFW : 00
FWVer : 0001
SATA PLL cal done
DDR size detected = 16MB

DDR size detected = 16MB

*PAUNI_L2958*PA VID=0011 PN=000D Rev=0001- PA_LSI2958 Found
*PAUNI_L2958*PA VID=0011 PN=000D Rev=0001- PA_LSI2958 FoundU
S_0SO_1
SPU@27'C,5010mV
IS=1
CLA ..36/91
HO..OK
HO RPM=613 OK
AC 1925
ST..OK
mS1 00000003
GT:413
SC(L):4092/16
BE.N:24
LD..OK
SK C:  8171 H:0
Loaded FIT ( 0: 0: 1)
CalibTable Loaded. Rev:0x1B
ResoTable Loaded. Rev:0x01
Bump Limit Loaded. Rev:0x01
RRO1xTable Loaded. Rev:0x01
Fw Active 00
Ovly loaded to 0x00014D00
Ovly loaded to 0x1002DF58
FdtTable Loaded. Rev:0x02
Unknown file id 384
Up MC

PwrOn RRO1x @ H0
Table) cos = 1634560, sin = -1012224
Coeff) cos = -1496, sin = -122334

DiskSlip : 271 [SrvTrk]
DiskSlip : 281 [SrvTrk]
0. phs diff 3 [wedges] Table) 351, coef) 348

PwrOn RRO1x @ H2
Table) cos = 1634304, sin = -1013248
Coeff) cos = -12119, sin = -110079

DiskSlip : 271 [SrvTrk]
DiskSlip : 274 [SrvTrk]
4. phs diff 4 [wedges] Table) 351, coef) 347
TgtCyl:     832
Hd:   2 Zn:   0 Avg.:-      9
TgtCyl:  266176
Hd:   2 Zn:   1 Avg.:    1092

SVCAL(0080,0000)-->PASS
RdyTm = 3333430 us 3333292
ENG>mS1 00000003
SK C:157577 H:0
mS1 00000003
SK C:157723 H:0
mS1 00000003
LDed
SK C:  7313 H:0
SC(U)..4092/74
UD..OK : 74
PK_4   C:    12 H:0

 healing Enable 003C 001E 0000 001EmS1 00000003
SK C:156882 H:0
mS1 00000003
SK C:154532 H:0
mS1 00000003
SK C:157956 H:0
mS1 00000003
LDed
SK C:  7306 H:0
SC(U)..4086/84
UD..OK : 84
PK_4   C:    27 H:0
mS1 00000003
GT:416
SC(L):4091/20
BE.N:23
LD..OK
SK C:  7470 H:0
LUL(835642)ms
mS1 00000003
SK C:157713 H:0
mS1 00000003
LDed
SK C:  7271 H:0
SC(U)..4091/69
UD..OK : 69
PK_4   C:    29 H:0
mS1 00000003
GT:416
SC(L):4083/23
BE.N:22
LD..OK
SK C:  8193 H:0
LUL(892045)ms
mS1 00000003
SK C:158393 H:0
mS1 00000003
LDed
SK C:  7271 H:0
SC(U)..4083/83
UD..OK : 83
PK_4   C:    39 H:0
mS1 00000003
GT:417
SC(L):4086/-11
BE.N:21
LD..OK
SK C:  7712 H:0
LUL(891847)ms
mS1 00000003
SK C:159265 H:0
mS1 00000003
LDed
SK C:  7317 H:0
SC(U)..4086/35
UD..OK : 35
PK_4   C:    36 H:0

Family selected: M8E 2.5''(SATA)
Model................................... : HN-M101MBB

Technological ID
Flash version........................... : 2BA2gbuM.d61
Heads number............................ : 4
SA SPT.................................. : 1536

Modules table loaded from SA

Zone allocated table loaded

Service Area
Head map................................ : 0, 1, 2, 3
Part number............................. : G3913G941B14NL
USER password........................... : No
Burn-In test............................ : "END" (Status: 0x02, Stop condition: 0x0000)

Data transfer rate setup
Current COM port data transfer rate..... : 115200 bps

HDD resources backup
****************************************
   Read ROM via terminal
   ****************************************
      Into folder............................. : \Data\SABackup\ROM

      Downloading executable code to RAM...... : Ok
      Calling executable code................. : Ok
      ROM reading in progress...
      Data availability checking.............. : Ok
      Checksum verification................... : Ok

      Information about dump
      Dump size............................... : 524288 bytes
      Firmware checksum....................... : Ok
      FIPS offset............................. : 0x00001000
      FIPS size............................... : 4096 bytes
      FIPS checksum........................... : Ok
      Firmware type........................... : Main Code
      Original name........................... : 2BA2gbuM.182
      Platform Id............................. : 0x52
      Head map................................ : 0, 1, 2, 3
   ****************************************

如果有任何疑问或者需要帮忙的欢迎随时联系我们
