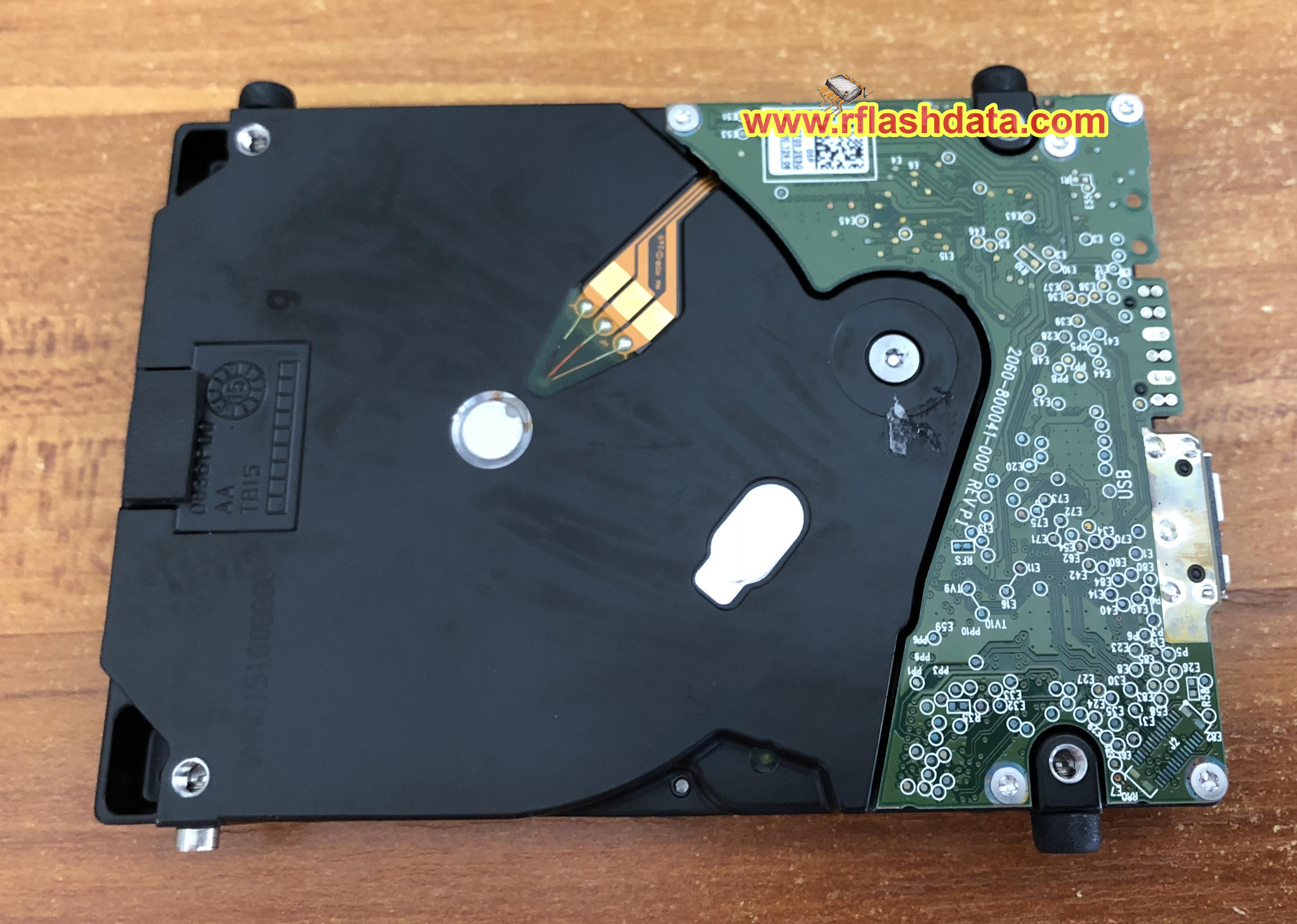

WD30NMRW-81YL9S4西数硬盘二次数据恢复硬盘电路板2060-800041-000维修

Version................................. : 0x0002
Controller firmware revision............ : 02.0UD
Servo firmware revision................. : 04.0J
Overlay firmware revision............... : 02.0VD
Surface format revision................. : A1.007
Read channel firmware revision.......... : A1.74000
Drive type.............................. : Mobile 2.5 Inch
Interface type.......................... : Serial ATA
PCBA type............................... : Entek rev 0
ROM type................................ : Serial Flash
Flash size (page size).................. : 512 (4) kB
DRAM size (allocated)................... : 131072 (125227) kB

Drive Parts Information
Controller chip vendor.................. : 0x0000
Controller chip revision................ : 0x5450 88i1047F0
MicroP vendor........................... : 0x0000
MicroP revision......................... : 0x5450
Channel chip vendor..................... : 0x001A
Channel chip revision................... : 0x0020
Preamp vendor........................... : 0x0001
Preamp revision......................... : 0x0003
Power chip vendor....................... : 0x0000
Power chip revision..................... : 0x8320

Drive Build Information
Product ID (Ext)........................ : 0x16FE (0x025A)
Model................................... : WDC ROM MODEL-PEBBLEB-
Serial number........................... : WDC-ROM SN# XYZ----
DCM..................................... :
Original built date..................... :
Reconfiguration date.................... :
Drive platters.......................... : 5
Physical heads.......................... : 10
Virtual heads........................... : 10
Depop bit map........................... : 0x00
Zones................................... : 61
Servo wedges............................ : 312
Negative cylinders...................... : 256
Spindle RPM............................. : 5400
User cylinders.......................... : 0
Cylinder wedge skew..................... : 31
Head skew............................... : 78
Cluster skew............................ : 112

Error Correction Information
No. of interleaves in OTF............... : 0
Number of ECC + CRC Bytes............... : 0
No. of bytes(symbols) corrected by OTF.. : 0(0)
No. of bytes(symbols) corrected by FW... : 0(0)
Feature flags........................... : 0x6DE7FDB6

Jumper Settings
Jumper setting value.................... : 0x0000
Master jumper........................... : OFF
Slave jumper............................ : OFF
CSEL jumper............................. : OFF

ReloList File Information
Number of relocations................... : 17
Number of tares......................... : 2
Number of Ftares........................ : 0
Max remaining possible relos............ : 2150
Number of consumed spares............... : 0
Last LBA of spare pool.................. : 5 892 318 527

Drive Format Information
Tracks per inch (in KTPI)............... : 0
Area Density in 100MB (per platter)..... : 6033
Format Type(0).......................... : primary format

SATA IPM Timers
Partial................................. : 0 ms
Slumber................................. : 0 ms

WD30NMRW-81YL9S4西数硬盘二次数据恢复硬盘电路板2060-800041-000维修

硬盘电路板2060-800041-000维修WD30NMRW-81YL9S4西数硬盘二次数据恢复
